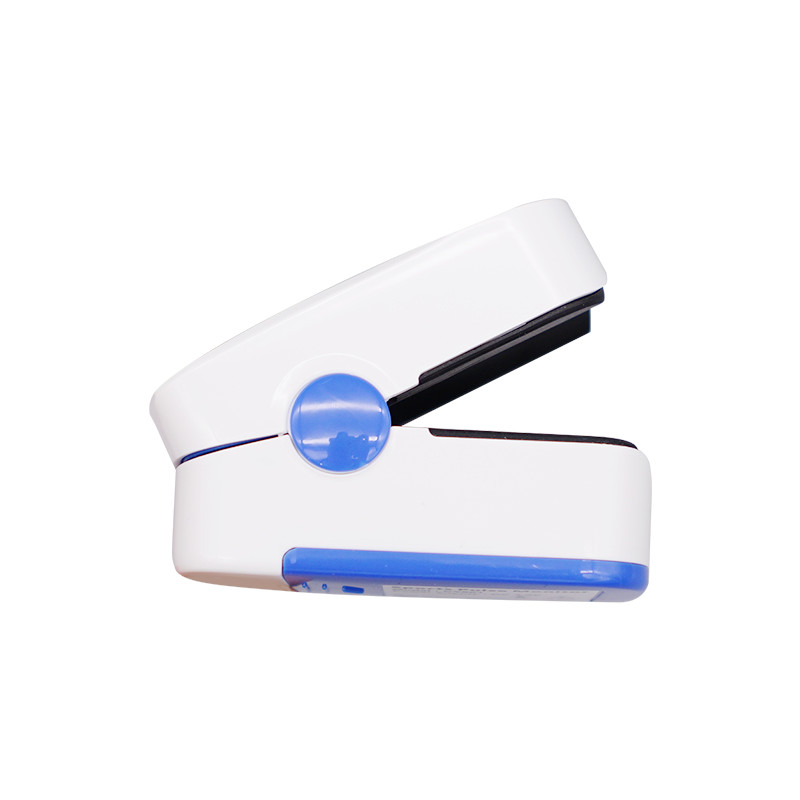

Heal Force Pulse Oximeter Blood Oxygen Saturation Monitor With
Alarm
★Product parameters.
Blood oxygen saturation measurement range: 70%-100% (resolution:
1%)
Blood oxygen saturation measurement accuracy: 80%-99% range ± 2%, ≤
70% not defined
Blood oxygen saturation resolution: blood oxygen saturation ±1%,
the
Pulse rate measurement range: 30BPM-240BPM
Pulse rate measurement accuracy: ±1BPM or ±1% of the measured value
(take the larger value)
Blood perfusion index measurement range:0.2%-30%
Blood perfusion index PI: ≥0.2%, ±0.1%
Power consumption: less than 30MA Automatic shutdown:8 seconds when
no finger is inserted
Storage humidity: 15%-80% when working, 10%-80% storage
Battery type: 2 * 1.5V (2 AAA alkaline, the product does not
contain batteries)
Operating temperature:5℃-4℃
Atmospheric pressure:70Kpa-106kpa
Material: ABS + PC Display Specifications: four color OLED
How to use a oximeter?
1 Install 2 AAA batteries according to the positive and negative
marks in the battery compartment and close the battery cover
2 Open the clamp and put the finger in the measuring area (fully
extend the finger)
3 In the process of use, the tested finger should not pull the
human
body and should not be in the state of movement.
4 Read the relevant data directly from the monitor.
During the measurement process, the display direction can be
5 changed once by pressing the key,
There are 6 conversion display directions.
Why use a oximeter to
measure blood oxygen
saturation?
OXYGEN SATURATION (SpO2), an important basic data of clinical medi-
cine, is an important indicator of
the state of OXYGEN in the body. The normal level of oxygen
saturation in the blood (arteries) is not thought
to be lower than 94%, and a lower level is considered inadequate.
Low oxygen saturation can lead to
dizziness, weakness and vomiting. In se- rious cases, it can be
life-threa ening.
Our Advantages
1. We have been specializing in the production of medical products
line for more than 35 years.
2. Obtained the CE,510K,ROHS,REACH quality system certification and
has passed BSCI,ICS factory audit.
3. We strictly control the quality of raw materials and products in
the production process.
4. Built a mold design team with more than 10 years of experience.
Support OEM and ODM service.According to
customer requirements to develop and design the mold.
5. Advanced laboratory equipment, can carry out a variety of
experimental tests.
Product Name | Digital Fingertip Pulse Oximeter |
Display Type | OLED display |
Display Brightness | 1-4 levels can be adjusted |
Power by | 2 x AAA batteries |
SpO2 | Measurement range: 70%~99% |
PR | Measurement range: 30BPM~240BPM |
Power consumption | below 30mA |
Operation Environment |
Operation Temperature:5℃~40℃ |
Storage Temperature | -10℃~40℃ |
Ambient Humidity | 15%~80% on operation |
Air Pressure | 86kPa~106k |
